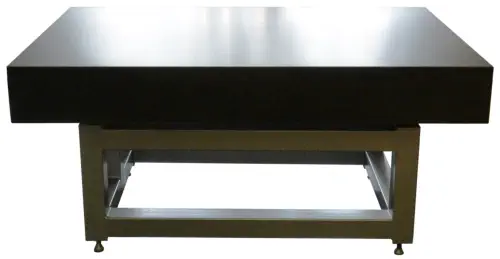

Surface Tables & Plates

Special sizes of Granite Surface Tables can be made to order and are manufactured to BS817:2008. Re-lapping is available on site. Annual calibration contracts can be offered. Calibration certificates supplied if required.

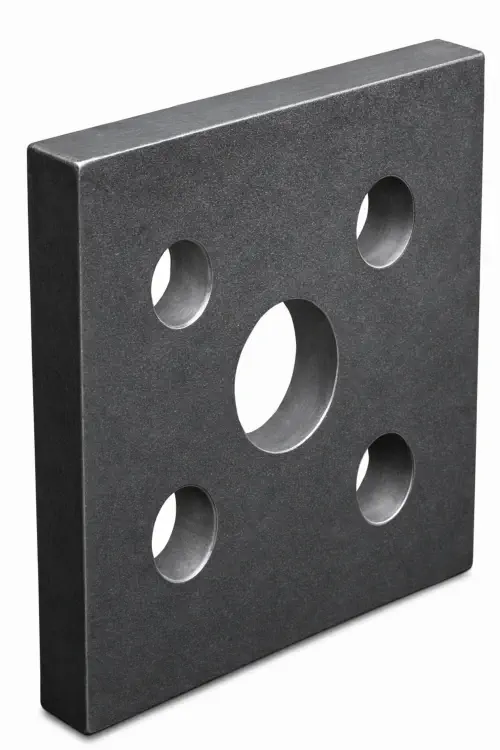

Granite Squares

Special size Granite Squares made to order and are available with aluminium carry cases. Manufactured to BS939:2007. Annual calibration contracts can be offered. Calibration certificates supplied if required. .

Precision Granite Products

Midland Metrology Limited are pleased to offer a full range of granite inspection tools and products that are manufactured to exacting standards. Engineers can be confident that our granite equipment offers an accurate base for measurement and work holding and therefore provides the user with the tools to determine the accuracy of components and parts on which decisions of production and acceptance are made. The Advantages of Granite Inspection Tools The advantages of introducing granite equipment into the inspection environment have been known for some time. Cast iron and steel inspection tools are susceptible to rusting and bruising which can adversely affect the accuracy of measurements being made. Fine grained granite does not rust and has less tendency to bruise or burr. Granite is also non-magnetic and non-conductive and is less likely to be affected by change. Most importantly, the purchase and use of our granite inspection tools is probably more cost effective than ever.  Standard Equipment and Bespoke Granite We are of course able to supply all standard granite measuring equipment including the equipment listed in this section. However, we are also in a position to offer bespoke engineered granite to the users individual designs. This includes the introduction of threaded inserts and/or specially machined features. Let us have your design drawings and we will be pleased to provide you with a competitive quotation.

Stock Items and Special

Sizes

Nearly all sizes of Granite Surface Tables, Plates, Triangular Squares and Squares are available from stock. Parallels, Straight Edges and Vee Blocks are available on a 6-8 week delivery time frame. As are bespoke sizes of Plates, Tables, Squares and Triangular Squares. Special sizes of Granite Tables are also available.  For example the image above shows a Surface Table 3600 mm. x 2200 mm. in size.

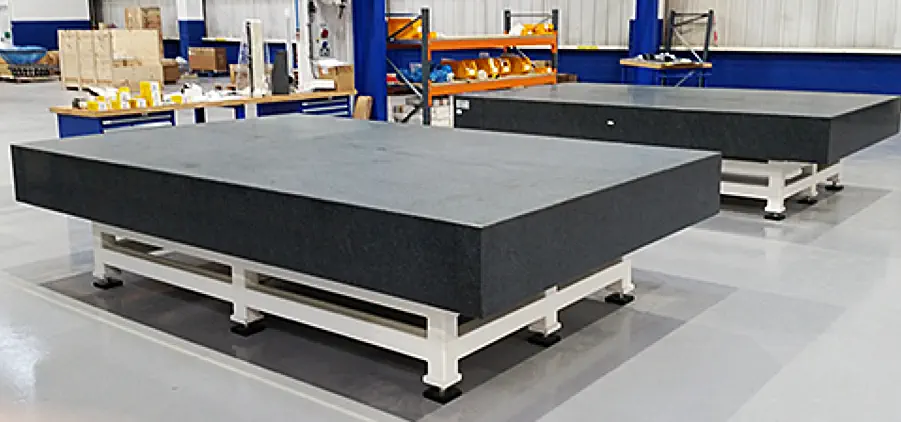

Large Special Granite Table 3600 mm x 2200 mm

Peace of mind…

All of our granite products are produced to the highest standards.  Our granite - Does not corrode Is very wear resistant Re-lapping on-site available Annual calibration contracts     available Please Note… Plates are supplied WITHOUT        a stand. Tables are supplied WITH         a stand. All plates and tables are to Grade        1 for flatness.

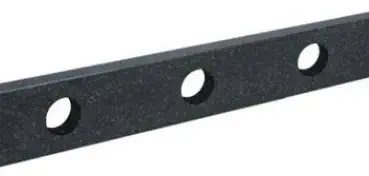

Straight Edges

Our Straight Edges are manufactured to BS5204-Part 1 & 2:1977 in a variety of standard and non standard lengths and cross sections. Often used by machine tool fitters to ensure line-ability of bearing ways and machining surfaces. These straight edges are a very popular tool with our customers.

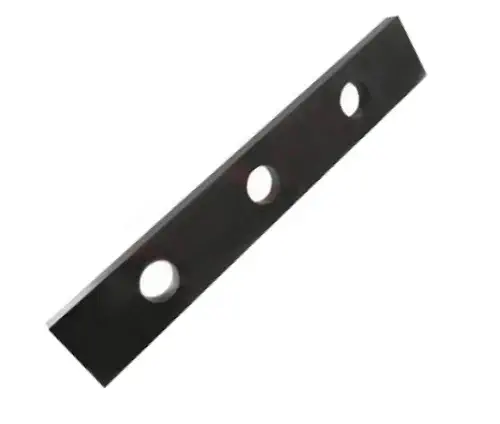

Parallels

Parallels are supplied in matched pairs in a variety of size to BS906-Part 1&2:1972. Used for precise location of work pieces to aid inspection. Due to the high accuracy our parallels are often used in calibration laboratories for the location/support of gauges and measuring instruments.

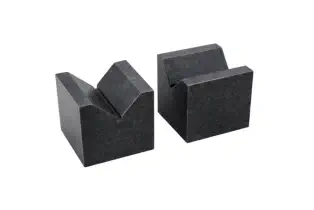

Vee Blocks

Our Vee Blocks are supplied in matched pairs in a variety of sizes and manufactured to BS3731:1987. To aid location and security threaded inserts can be included on any of the working faces.

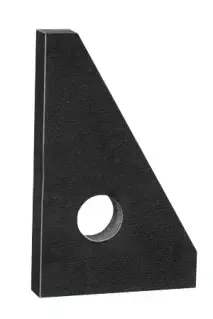

Triangular Squares

Special size Triangular Squares made to order and manufactured to BS939:2007. They are available with aluminium carry cases. Annual calibration contracts can be offered. Calibration certificates supplied if required.
Midland Metrology Ltd |  Unit G3 Little Heath Ind.Est. Coventry  | England | CV6 7ND | Tel: +44 (0) 2476 638280 Email: sales@midland-metrology.co.uk

Surface Tables & Plates

Special sizes of Granite Surface Tables can be made to order and are manufactured to BS817:2008. Re-lapping is available on site. Annual calibration contracts can be offered. Calibration certificates supplied if required.

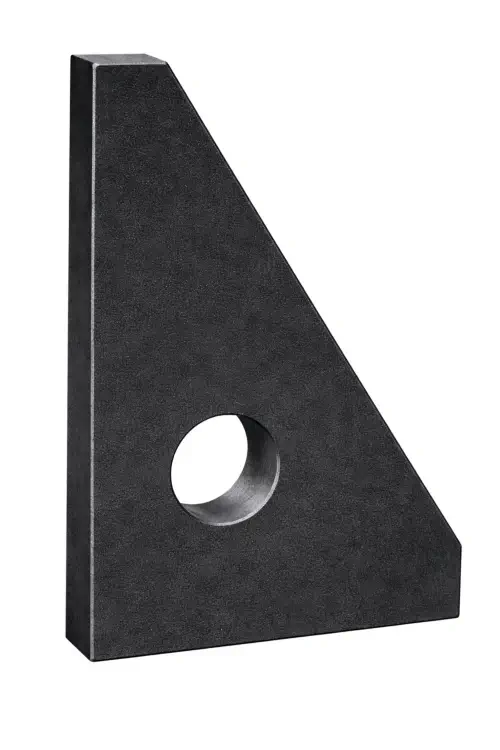

Granite Triangular Squares

Special size Triangular Squares can be made to order and are available with aluminium carry cases. All of our triangular squares are manufactured to BS939:2007 and can be supplied with calibration certificates, if required.

Precision Granite Products

Midland Metrology Limited are pleased to offer a full range of granite inspection tools and products that are manufactured to exacting standards. Engineers can be confident that our granite equipment offers an accurate base for measurement and work holding and therefore provides the user with the tools to determine the accuracy of components and parts on which decisions of production and acceptance are made. The Advantages of Granite Inspection Tools The advantages of introducing granite equipment into the inspection environment have been known for some time. Cast iron and steel inspection tools are susceptible to rusting and bruising which can adversely affect the accuracy of measurements being made. Fine grained granite does not rust and has less tendency to bruise of burr. Granite is also non-magnetic and non-conductive and is less likely to be affected by change. Most importantly, the purchase and use of our granite inspection tools is probably more cost effective than ever.  Standard Equipment and Bespoke Granite We are of course able to supply all standard granite measuring equipment including the equipment listed in this section. However, we are also in a position to offer bespoke engineered granite to the users individual designs. This includes the introduction of threaded inserts and/or specially machined features. Let us have your design drawings and we will be pleased to provide you with a competitive quotation.. Please Note… Plates are supplied WITHOUT a stand. Tables are supplied WITH a stand. All Plates and Tables are to Grade 1 for flatness
MMidland Metrology LimitedMidland Metrologyidla4 (0) 2476 638280

Straight Edges

Our Straight Edges are manufactured to BS5204-Part 1&2:1977 in a variety of standard and non standard lengths and cross sections. The are often used by machine tool fitters to ensure line-ability of bearing ways and machining surfaces. These straight Edges are a very popular tool with our customers. Parallels Parallels are supplied in matched pairs in a variety of sizes to BS906-Part 1&2:1972. Used for precise location of work pieces to aid inspection. Due to their high accuracy, our parallels are often used in calibration laboratories for the location/support of gauges and measuring instruments. Vee Blocks Our Vee Blocks are supplied in matched pairs in a variety of sizes and manufactured to BS3731:1987. To aid location and security, threaded inserts can be included on any of the working faces.

Granite Squares

Special size Granite Squares can be made to order and are available with aluminium carry cases. All of our squares are manufactured to BS939:2007. Annual calibration contracts can also be offered. Calibration certificates can also be supplied, if required.
