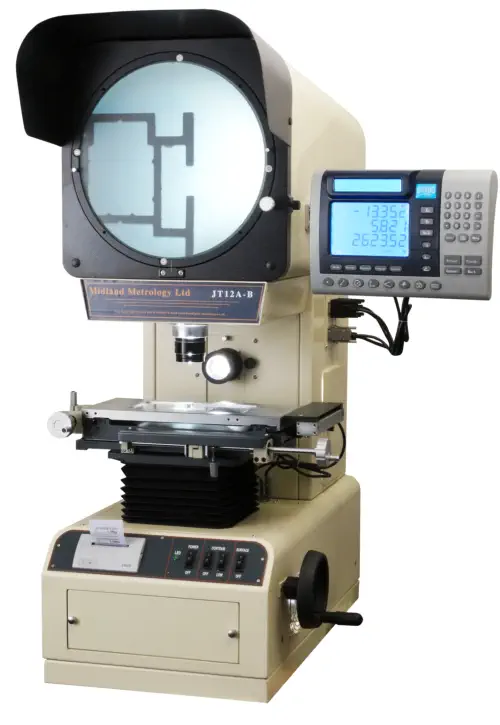

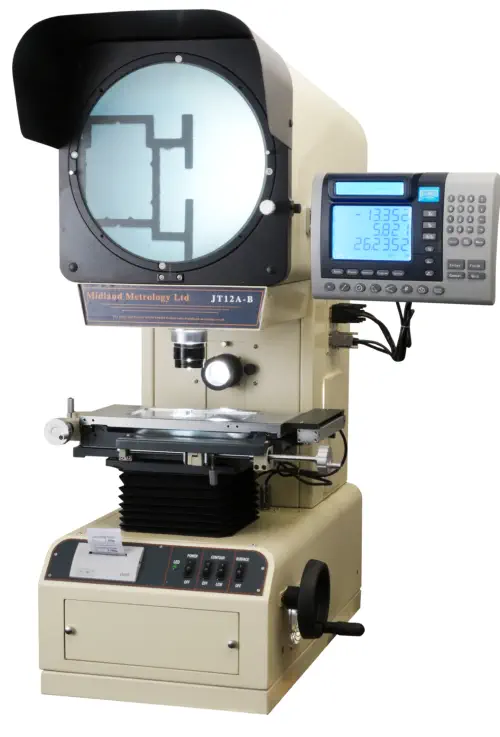

JT12 B3
An economical vertical
profile projector with a
250mm screen and
100mm x 50mm
movement work
stage, digital display
on both linear and
angle. Suitable for
workshop and
inspection
departments.

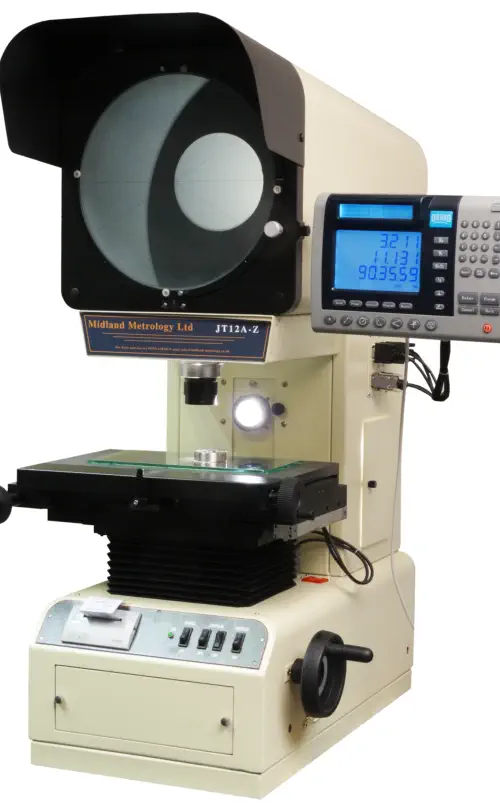

JT12 AB
A vertical profile
projector with a
300mm diameter
screen and angular
measurement. 150mm
x 50mm movement
work stage with a
DS600 geometric
display box and built in
mini printer, profile and
surface illumination.
Suitable for workshop
and inspection
departments.

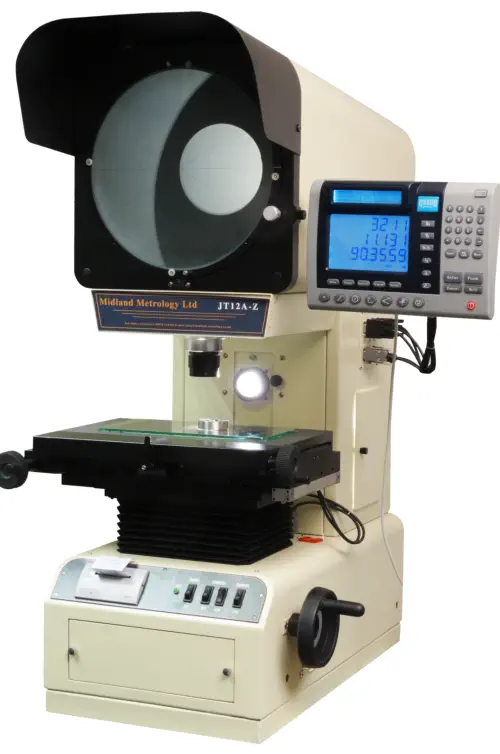

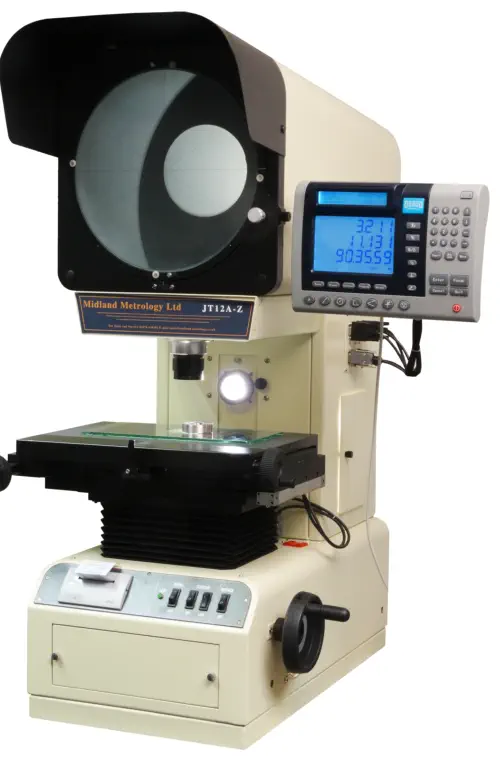

JT12 AZ
A vertical profile
projector with a
300mm diameter
screen and angular
measurement, 200mm
x 100mm movement
work stage with digital
display, DS600
geometric display box
and built in mini
printer, profile and
surface illumination.
Suitable for workshop
and inspection
departments.
Profile Projectors
Our range of profile projectors comprise of both vertical and horizontal style
machines as well as small compact bench types where space is at a
minimum.
New profile projectors supplied by us come with a calibration certificate and
12 months warranty for complete peace of mind. Used projectors are
always in stock and often include the ever popular Baty R14 and Mitutoyo
PJ300 and Mitutoyo PJ3000.
Profile Projector Demonstrations
We are happy to give demonstrations at our Coventry showroom where we
always keep a comprehensive range of both new and used machines. Our
wide range of projectors allow us to provide our customers with best type
of machine for their application.

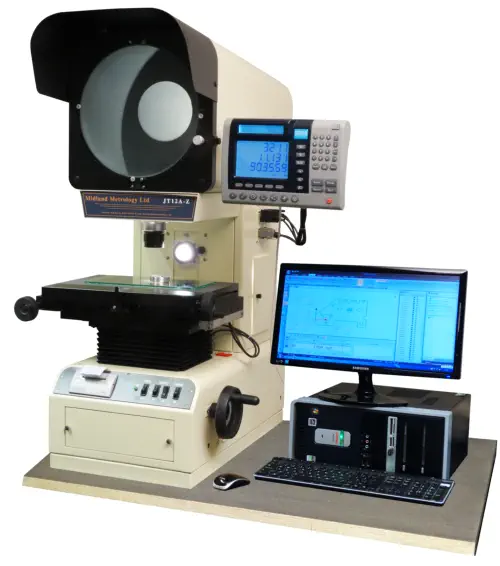

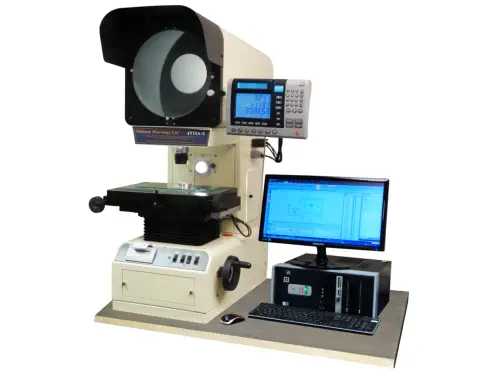

JT12AZ-PC
A vertical profile
projector with a 300
mm diameter screen
and angular
measurement.
200mm x 100mm
movement work stage
with digital display
DS600 geometric
display box, built in
mini printer. profile
and surface
Illumination. This
projector is linked to a
PC and uses Axel 2
axis geometric
software for drawing
the component as it is
being measured.
SPC and CAD
included. Suitable for
quality control
departments.
Profile Projector Retrofits
If you already own a profile
projector that you would like
bringing up to date then why not
contact us for a quotation to retrofit
new electronics and scales.
Profile Projector Service
and Calibration
Our commitment to you does not
end once you have bought a profile
projector from us. We can offer
on-site service and calibration
contracts to ensure your projector
is maintained in first class condition.
Please contact us for further details.
We will be happy to assist.
Sophisticated Electronics
Profile projectors with screens 12
inches / 300 mm, 14 inches / 350
mm or 16 inches / 400 mm
diameter are available with
sophisticated electronics and
geometric measurement functions
including the calculation of radius,
diameter angles etc. Projectors are
also available with simple
conventional digital displays.

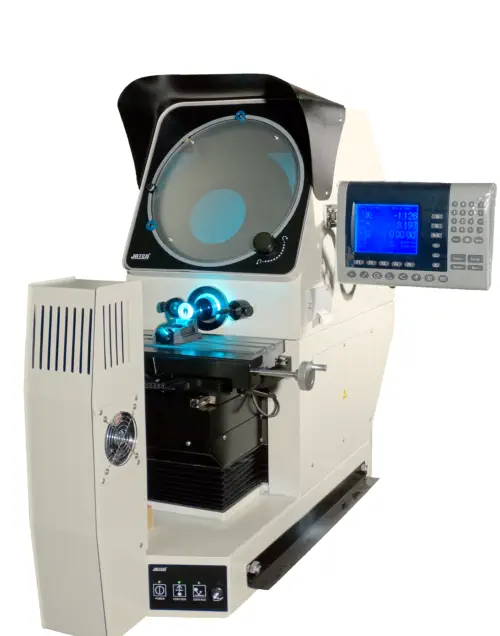

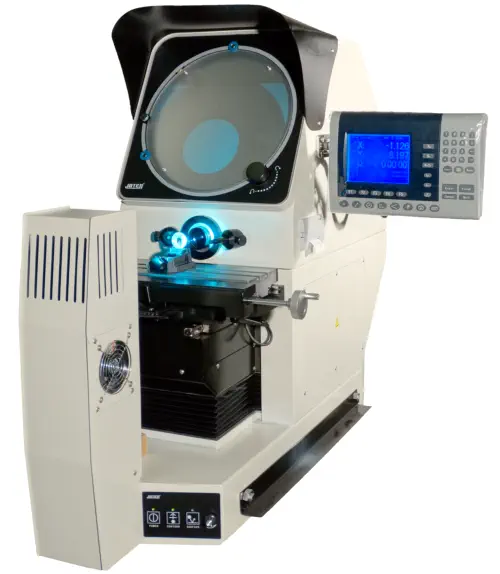

HB12
A horizontal profile
projector with a
300mm diameter
screen and angular
measurement. 200mm
x 100mm movement
work stage with digital
display DP300
geometric display box,
with built in mini
printer and profile and
surface illumination.
Suitable for workshop
and inspection
departments.

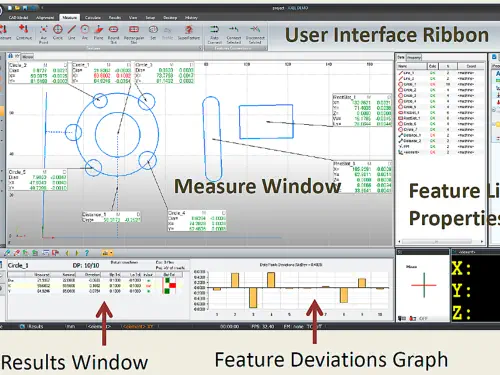

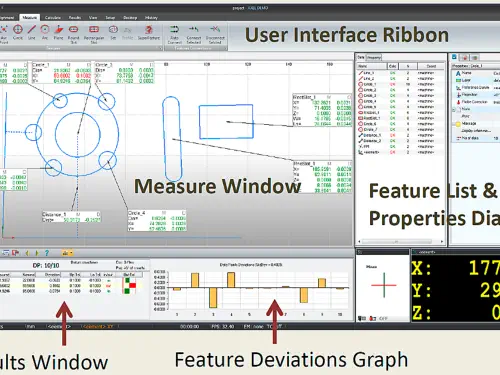

Axel Software
When Axel Software is
connected to our
profile projectors, it
allows a component
to be drawn as it is
being measured,
It also has the
advantage of being
saved and exported
as CAD files,
SPC is another
capability of the
system. The operator
can easily generate
working drawings with
dimensions and
tolerances.
Full A4 size print
reports customised for
each operator are
easily produced.

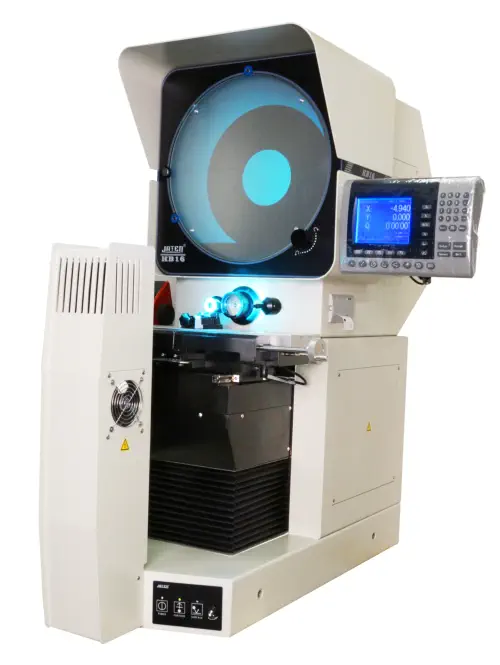

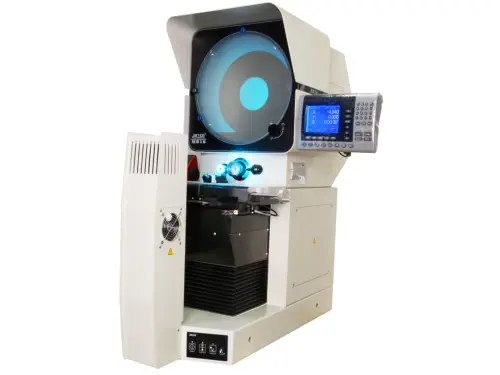

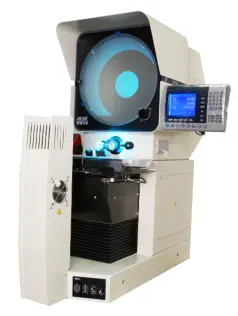

HB16
A horizontal profile
projector with a 400mm
diameter screen and
angular measurement.
300mm x 150mm
movement work stage
with digital display
DP300 geometric display
box and built in mini
printer, profile and
surface illumination.
Suitable for workshop
and inspection
departments.
Peace of mind…
Profile Projectors supplied by
Midland Metrology are issued with
a calibration certificate and 12
months warranty for complete
peace of mind.
