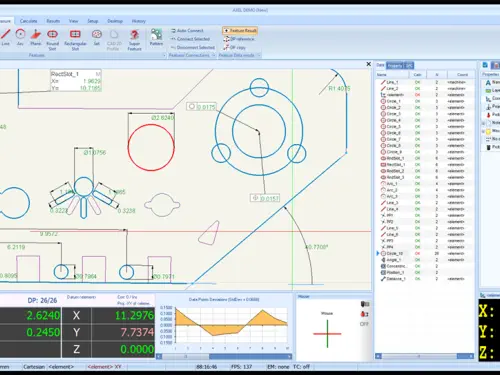

Axel 2D Software

Suitable for retro- fitting to a wide range of two dimensional measuring machines, profile projectors etc.

Axel 3D Software

For three dimensional measuring machines (CMMs).

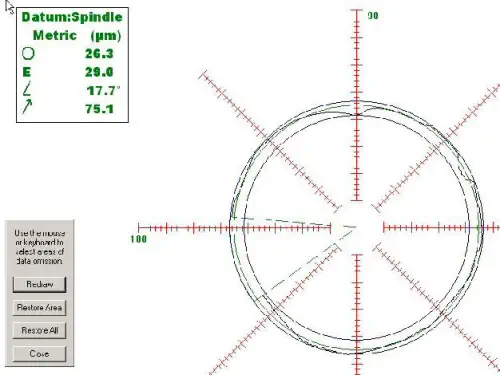

Logitrace Software

The Logitrace range of software can be retrofitted to a large number of roundness testers. The software provides roundness data, straightness and cylindricity.
Axel 2D Software Axel 3D Software Logitrace Roundness Software

Software

We offer a range of two dimensional (2D) and three dimensional (3D) software suitable for retro-fitting to a wide variety of measuring machines and projectors etc. To complement the 2D and 3D software we also provide Logitrace software for roundness testing machines.

Software Available for a

Range of Machines

We offer a 2D version for use with profile projectors. This is available as an additional option with the purchase of the machine or at a later date if required. We are also able to offer updates and retrofits to co-ordinate measuring machines. Software is available for most machines, but in particular we offer Axel and Mitutoyo software. In addition, we offer our image system software which is used in our vision measuring (non-contact) machines. All of these packages of Axel software will draw the part as it is being measured. This software also has the facility to import and export CAD and DXF files and has the ability to perform SPC.

Roundness Testers

Roundness testers can be updated to a PC based system. This has the advantage of making centering and levelling much easier. Selection of magnification also requires little effort. The PC based system permits full reporting of results and roundness charts.

Peace of mind…

Our software is supplied, fitted and supported by our software experts.  Full training is provided together with after sales support.
