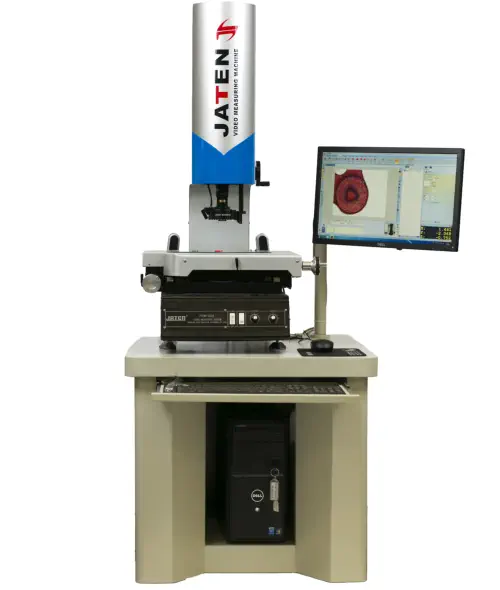

Vexus VMM
This is an accurate and very economic Video
Measurement System. The system is available in a
number of sizes and is supplied ready to use with a PC
and Axel 2D Measurement Software. The system comes
complete with a purpose made stand/trolley which
supports the video and houses the PC.

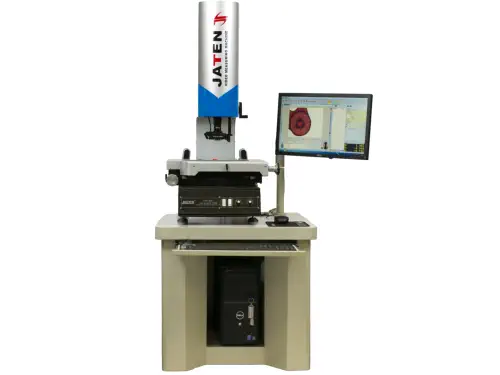

Vexus VMMP

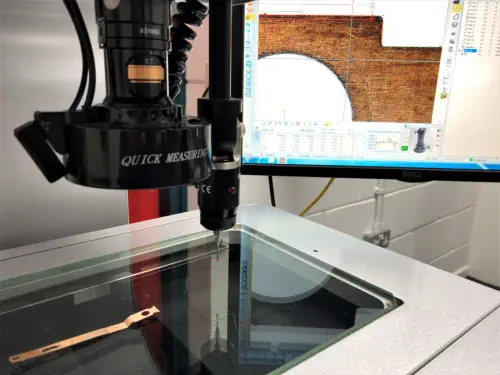

Add a Renishaw Touch Probe to the standard Video
Measurement System and it becomes a cost effective 3
Co-ordinate Measuring Machine. Both camera and Touch
Probe can be used in the same measurement routine to
build a 3D model of the part under test. The AXEL
Measurement Software provides CAD statistical and
reporting facilities.

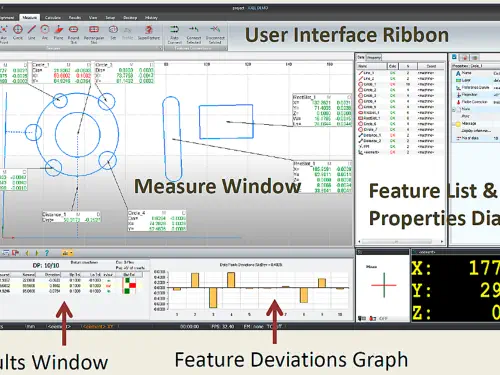

Axel 7 2D Software
Axel Software can be used with Vision Measuring
Machines, Profile Projectors, and 3 Axis Measuring
Machines (CMM)
This Software is able to use the measured data from both
the Camera and Renishaw Touch Probe to create both 2D
and 3D drawings.
Circle, Radius, Line, Point, Plane, Cone and Sphere are
some of the features available.
From these features we can generate, Distance, Angle,
Intersection and Symmetry etc.
Vision Optical Measuring Machines
Vision Measuring Machines use optical, non-contact video
measuring methods for measuring in two dimensions.
This method of non-contact optical measuring allows for
fast and efficient measurement of artefacts and
components that are either too delicate for contact
measuring methods or too small.
The highly versatile and advanced Axel 7 2D measuring
software makes these optical measuring machines fast
to use, powerful and versatile.
Vision Optical Measuring Machines
Our vision measuring machines are available in both
manual operation, and can also be CNC controlled.
There are two styles for the manual machines, and both
styles have a number of different sized work stages.
Not only do they use a high accuracy camera system, but
can be enhanced with the addition of a Renishaw touch
probe. This allows 3D measurement.
Axel Software supplied with the machines is a powerful
measuring tool.
Complex calculations can be made, with full re-plotting
and dimensioning of the measured components.
MMidland Metrology LimitedMidland Metrologyidla4 (0) 2476 638280
QVS CNC Series 2
Granite structure, high accuracy and stability,
THK bearings & screws, double close-loop servo motor to
ensure speed & accuracy.
Adjustable 48 division LED ring light software controlled
with memory function.
Advanced 0.7X – 4.5X motorized Zoom Lens and Sony ½
colour high resolution CCD Camera
High Accuracy 0.5μm. Renishaw scale
CCD navigation system to improve measurement speed.
Axel 2D & 3D geometric software.
Video Machine
An economical Video Machine in a number of different
sizes. Measurements can be taken in either 2 or 3 axis
by the use of a Renishaw probe system. Axel Software
facilitates drawing of the component during
measurement with tolerancing. CAD and DXF import and
export and SPC.
VML CNC Series
Granite structure, high accuracy and stability
THK bearings & screws, double close-loop servo motor
to ensure speed & accuracy.
Adjustable 48 division LED ring light software controlled
with memory function.
Advanced 0.7X – 4.5X motorized zoom lens and Sony ½
colour high resolution CCD Camera,
high accuracy 0.5μm. Renishaw scale
CCD navigation system to improve measurement.
